Global workflows for LLM agents

ZipperGen is a Python DSL and runtime for multi-agent LLM systems. You write one global protocol: who talks to whom, who calls tools or LLMs, and who owns each decision. ZipperGen projects the protocol to local agents and runs them concurrently.

Coordination is explicit, inspectable, and deadlock-free by construction.

View on GitHub Try the demo Read the paper

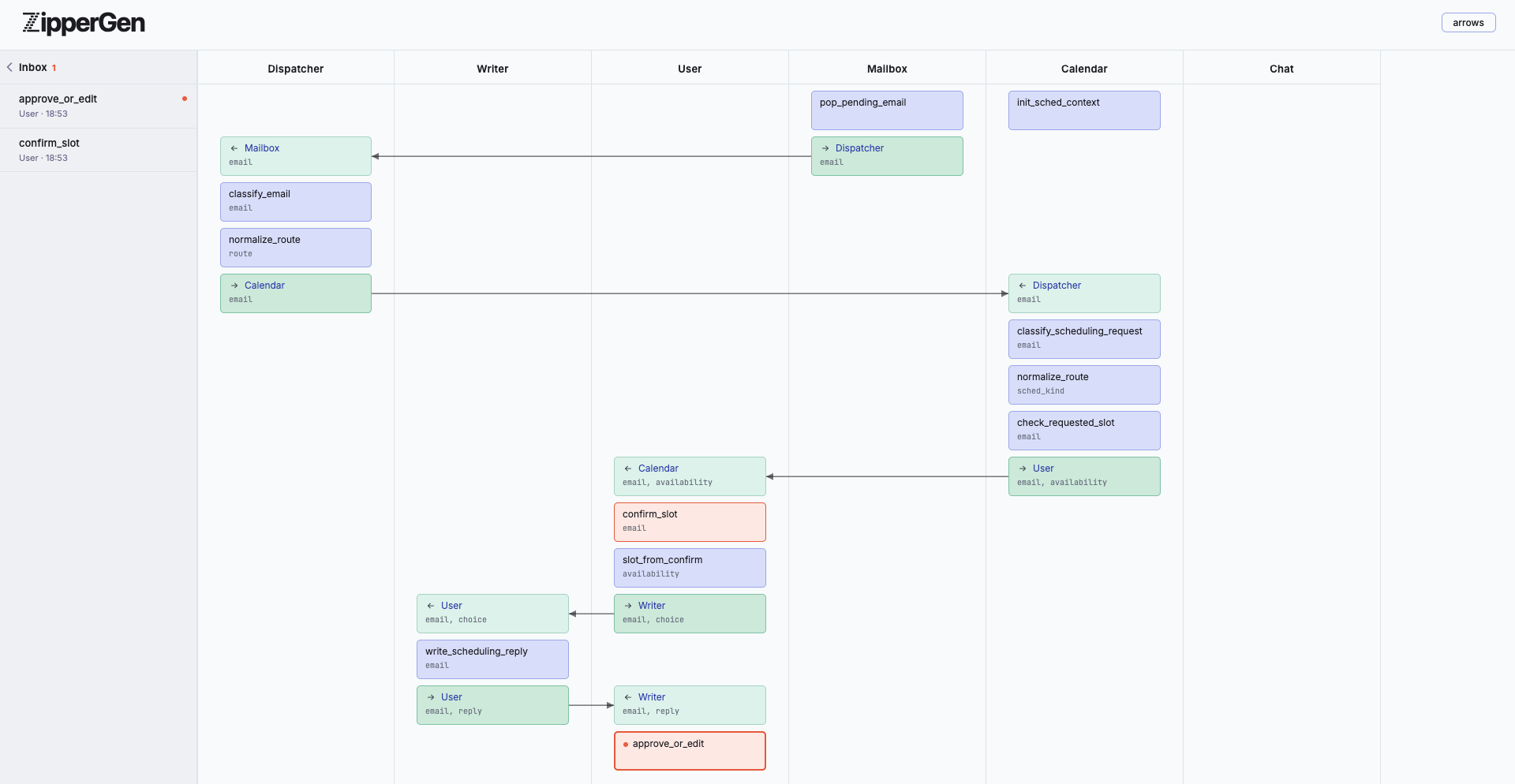

ZipperChat MSC view showing lifeline columns with action, message, and decision cards

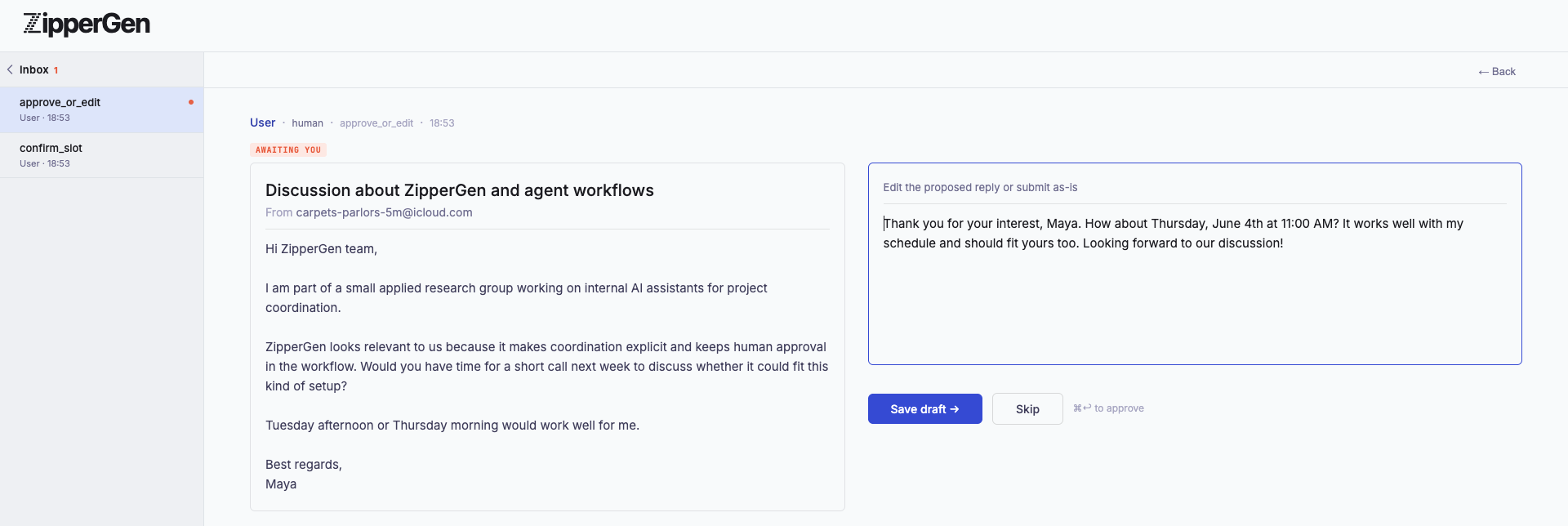

ZipperChat detail view with email context on the left and a draft reply form on the right — Clicking a human action opens a detail view. You can review the context and respond.

Global protocols

Write the coordination once: messages, decisions, tools, LLM calls, and human approval points.

Local agents

ZipperGen projects the protocol to one local program per lifeline. Each agent receives only the sends, receives, decisions, and actions it needs.

Concurrent runtime

The projected agents run concurrently. The generated coordination code preserves the message structure of the protocol.

Inspectable execution

Runs can be inspected as message sequence charts in ZipperChat.

Formal core

The projection is based on Message Sequence Charts and choreographic programming. The core deadlock-freedom theorem is machine-checked in Lean 4. The implementation is on GitHub.

Bollig, Függer, Nowak. Provable Coordination for LLM Agents via Message Sequence Charts. arXiv:2604.17612 [cs.PL]

Bollig. Causal Past Logic for Runtime Verification of Distributed LLM Agent Workflows. arXiv:2605.20923 [cs.LO]

Example: branching with an owner

Branching with an owner.

The annotation @ Editor says that Editor owns the decision. ZipperGen generates the control communication needed by the other lifelines.

@workflow
def write_tweet(topic: str @ User) -> str:
    User(topic) >> Writer(topic)
    Writer: tweet = draft(topic)
    Writer(tweet) >> Editor(tweet)
    Editor: approved = approve(tweet)

    if approved @ Editor:
        Editor(tweet) >> User(tweet)
    else:
        Editor(tweet) >> Writer(tweet)
        Writer: tweet = revise(tweet)
        Writer(tweet) >> User(tweet)

    return tweet @ User

Example: command center

Two parallel loops, shared agents.

Calendar, Writer, and User are shared lifelines. ZipperGen's projection ensures each receives exactly the messages it needs from whichever branch generated them.

Full source on GitHub

@workflow
def command_center():
    with parallel:
        with branch:
            email_loop()
        with branch:
            chat_loop()

Runtime guards

Reading causally current state.

Guards can read the latest causally visible state instead of a sequential log. Vector clocks and message-carried views make the guard result depend on the asynchronous communication structure.

latest_device_on = At[Device].on == True

if latest_device_on @ Indicator:
    ...

Run locally

Run the first examples without API keys.

The built-in mock backend returns placeholder model outputs. To use real model calls, set the provider to OpenAI, Mistral, or Claude with one configuration line. ZipperGen also accepts OpenAI-compatible local model servers such as vLLM.

git clone https://github.com/zippergen-io/zippergen.git
cd zippergen
pip install -e .

python examples/hello.py                 # two lifelines, one LLM call
python examples/command_center.py --mock # email triage + Telegram commands
python examples/parallel.py              # fan-out / fan-in across branches

Start from the examples.

Inspect the generated message sequence chart and decide whether global protocols fit your agent system.

Get the code About the project
